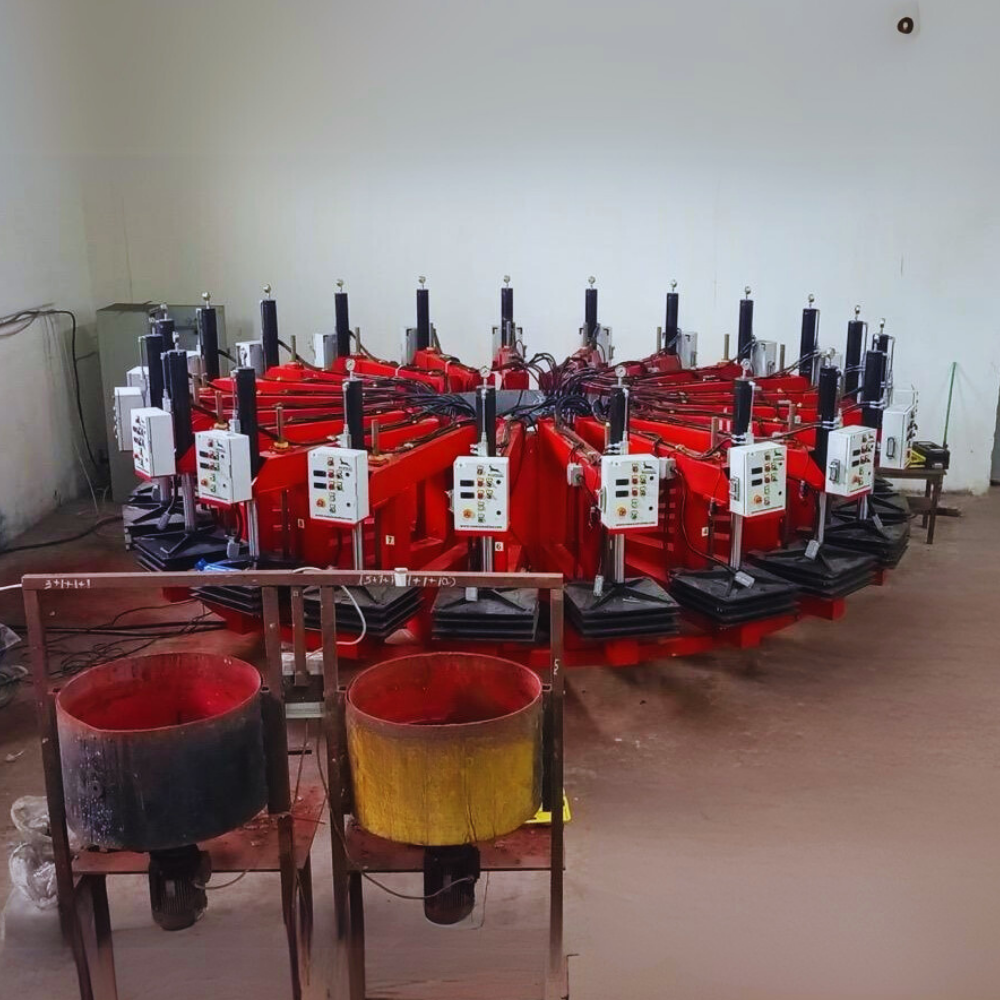

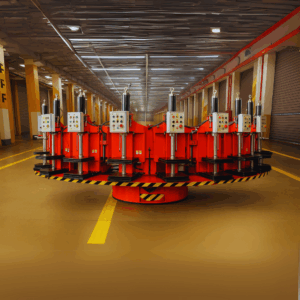

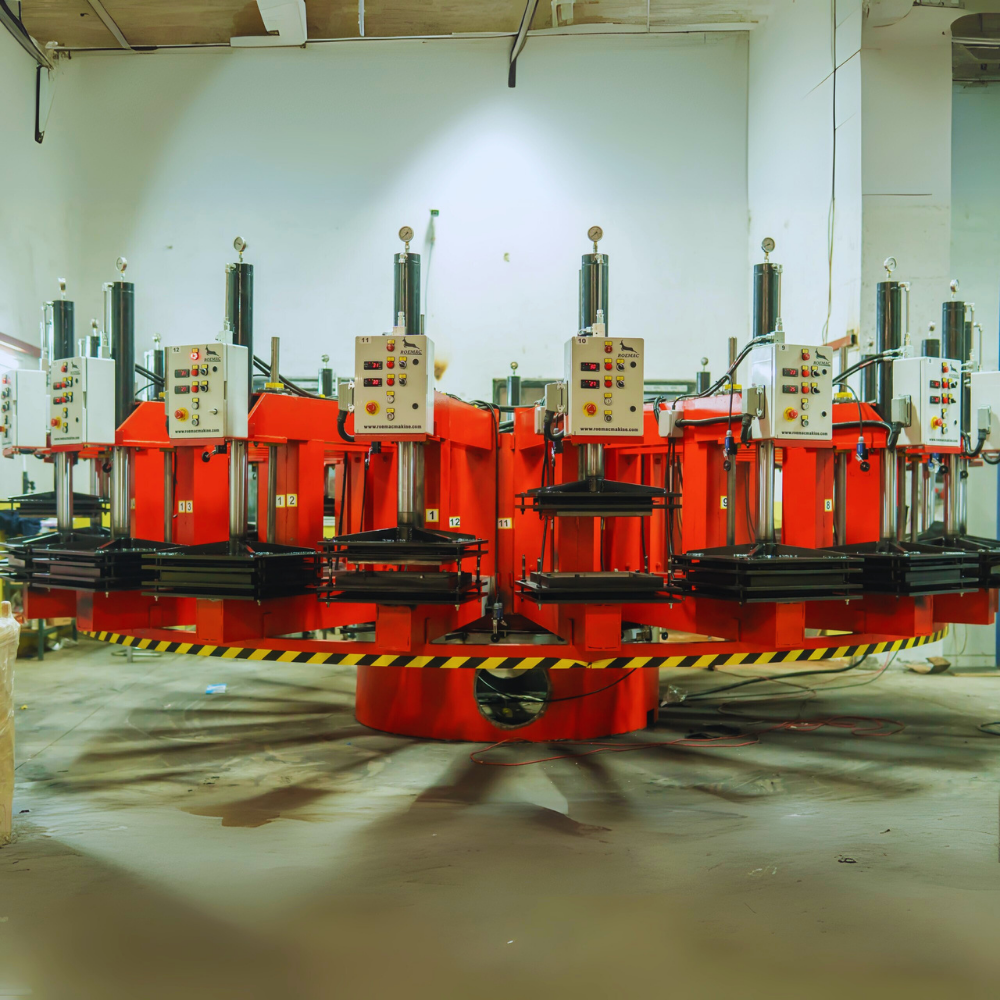

The ROE-AHTAPOT PRES 21 is a revolutionary solution for rubber tile production. With its specially designed 21 independent arms, it can produce up to 180 rubber tiles per hour. Its ability to work with molds of different sizes makes it an unmatched production machine in the industry. At Globsan, we use the most advanced technologies offered by Roemac Machinery to produce the highest quality and most durable rubber flooring for your projects.
Get Offer

ROE-AHTAPOT PRES 21 Technical Specifications

High Production Capacity:

  • Production of 180 pieces per hour (20 mm thickness).
  • Option to place individual molds on each arm.
  • Automatic speed adjustment according to product thickness.

Power and Performance:

  • Outer Diameter: 6 meters
  • Electric Power: 380 Volt (3 Phase), 80 kW
  • Hydraulic Motor Power: 5.5 kW
  • Oil Capacity: 300 liters

Heating and Pressure Control:

  • Maximum Temperature: 200°C
  • Adjustable temperature for upper and lower molds.
  • Pressure applied to each arm: 8-10 tons.

Mold and Table Features:

  • Table Dimensions: 600 x 600 mm, with heating system.
  • Adjustable pressure and temperature control for different thicknesses.

Ease of Use:

  • Manual Lifting and Lowering Feature: Option for automatic or manual operation based on needs.
  • Quick Mold Change: Enables fast mold replacement and the production of various designs.

This advanced press machine, with its high production capacity and quick mold change advantages, is the perfect solution for large-scale production.

Mold Varieties:

  • 40×40 cm Rubber Tile
  • 50×50 cm Rubber Tile
  • Puzzle Rubber Mold
  • With the ROE-AHTAPOT PRES 21, you can even use 3 different molds simultaneously.

Advantages of ROE-AHTAPOT PRES 21:

  • High Production Capacity: Up to 180 rubber tiles per hour.
  • Flexible Mold Usage: Compatible with puzzle, 40×40 cm, 50×50 cm, and hexagonal designs.
  • Fully Automatic & Precise Temperature Control: Ensures the best compression and curing quality.
  • Manual & Automatic Operation Options: User-friendly design.
  • Low Energy Consumption & Eco-Friendly Technology: Supports a sustainable production process.
  • Fast & Efficient Operation: Achieve high-quality products in a short time.

At Globsan, we produce high-quality and durable flooring solutions with the ROE-AHTAPOT PRES 21. It’s the ultimate solution for large-scale projects!

Differences Between ROE-AHTAPOT 21-Arm and Flat Press:
